Compact FF Series Flange Mounted Parallel Shaft Reduction Motor High Efficiency Helical Gearbox for Industrial Machinery

Name: Compact FF Series Flange Mounted Parallel Shaft Reduction Motor High Efficiency Helical Gearbox for Industrial Machinery
Brand: HG Crane
Price: 135 USD

Buy cheap Compact FF Series Flange Mounted Parallel Shaft Reduction Motor High Efficiency Helical Gearbox for Industrial Machinery product

Delivery Time : 7 Days

Packing : Wooden Box

Model Number : FF

Price : 135

Packaging Details : Wooden Box

Supply Ability : 1/7 days

Material : HT250 high-density cast iron

Payment Terms : T/T

Connection Type : Flange

Place of Origin : Henan

Brand Name : HG Crane

MOQ : 1

Color : Costom

Contact Now

Compact FF Series Flange Mounted Parallel Shaft Reduction Motor High Efficiency Helical Gearbox for Industrial Machinery

Product Highlights: FF Series Parallel Shaft Helical Gear Motor

Premium Materials & Rugged Construction

High-Strength Housing: Crafted from premium HT250 high-density cast iron. The housing is manufactured through a professional casting process to ensure maximum rigidity, excellent vibration damping, and the ability to withstand heavy-duty industrial impacts.

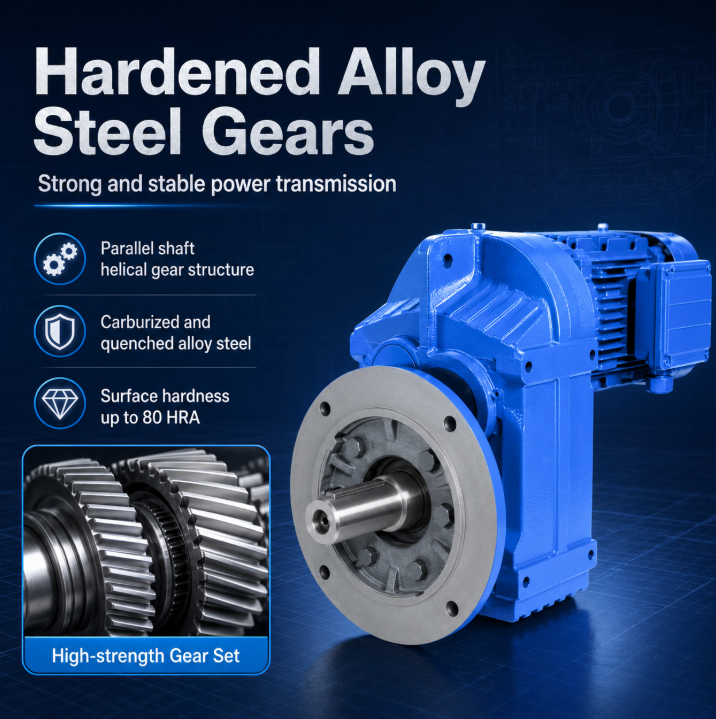

Superior Alloy Gears: We use 20CrMnTi alloy steel for all internal gears. This high-grade material ensures the gears remain stable and reliable even under extreme torque and high-load conditions.

Advanced Manufacturing & Precision Engineering

Hardened Tooth Surface: Gears undergo a rigorous carburizing and quenching heat treatment process. This achieves a surface hardness of 58-62 HRC, significantly enhancing wear resistance and extending the product's service life.

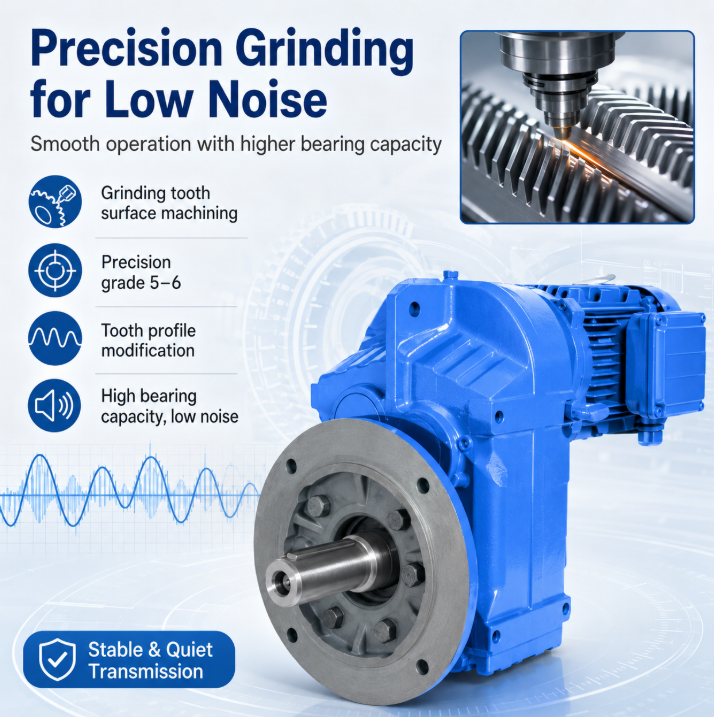

CNC Precision Grinding: Utilizing world-class CNC gear grinding technology, our gears reach ISO Grade 6 precision. This leads to exceptionally smooth meshing, resulting in ultra-low noise (below 65dB) and high mechanical efficiency.

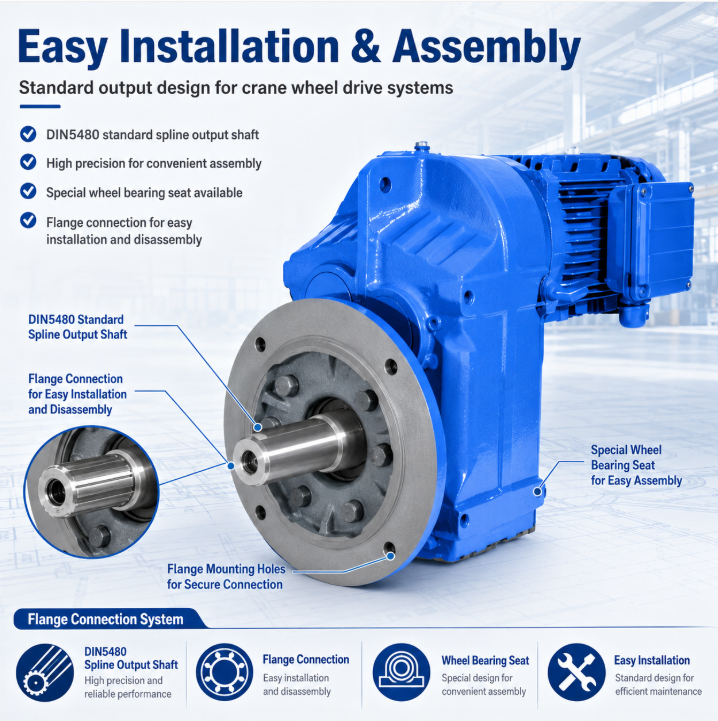

Integrated B5 Flange: The FF-type features a precision-machined B5 output flange. The exact tolerances ensure perfect alignment with your equipment, reducing vibration and simplifying the installation process.

High Performance & Functional Advantages

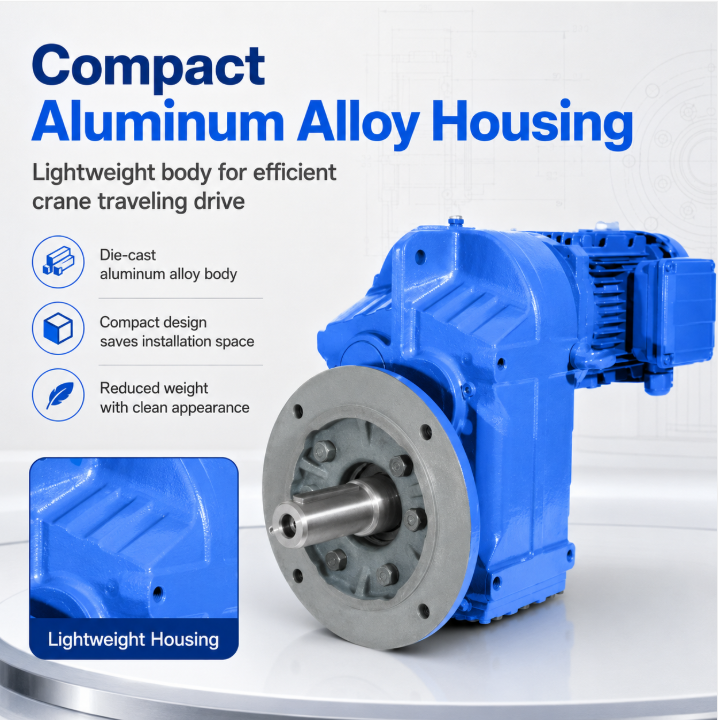

Space-Saving Parallel Shaft Design: The slim, compact profile is specifically engineered for applications with limited installation depth. It saves up to 30% more space compared to conventional coaxial gearboxes, making it the ideal choice for crane end carriages and conveyors.
High Transmission Efficiency: The helical gear design provides a transmission efficiency of up to 94%-97%, significantly reducing energy consumption and operational costs.

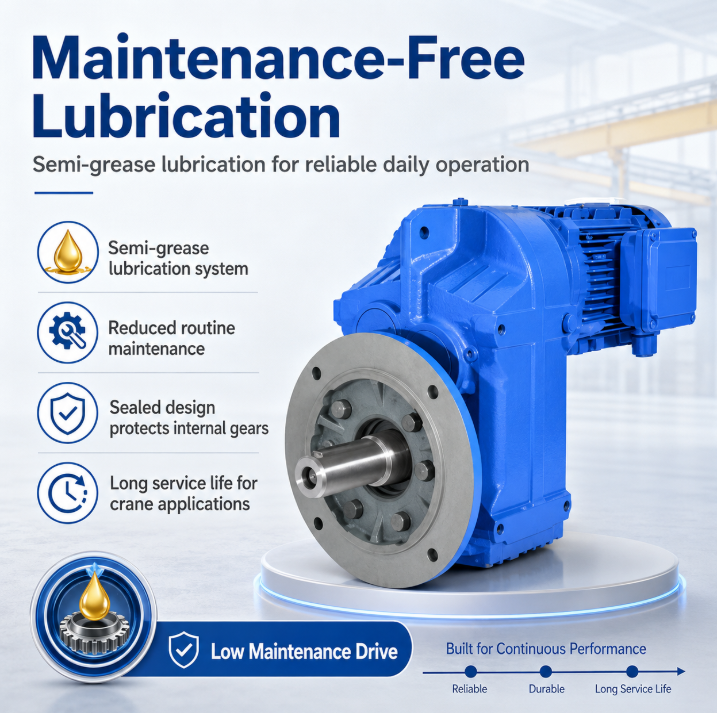

Maintenance-Free Sealing: Equipped with high-quality imported dual-lip oil seals. These provide superior protection against dust and oil leakage, ensuring the motor runs reliably in harsh, dusty industrial environments.

Why Choose Our FF Series Gear Motor?

Optimized for Cranes

The slim design is the perfect fit for crane traveling mechanisms.

Durability Guaranteed

Hardened gears and a rugged housing ensure a long lifecycle with minimal maintenance.

Silent & Smooth

High-precision grinding ensures the quietest operation in its class.

Flexible Mounting

The B5 flange allows for direct, stable mounting to a wide variety of industrial machines.

Technical Specifications

Compact FF Series Flange Mounted Parallel Shaft Reduction Motor High Efficiency Helical Gearbox for Industrial Machinery

Specification	Ls	Lg	S	H	W	H1	H2	H3	H4	d × l	ΦD	Spline size
FFT3W22MF115	82	93	10	224	120	60	108.5	113	50	M8×85	140	W22×1.25×16×8f
FFT3W30MF115	86	93	10	224	120	60	108.5	113	50	M8×85	140	W30×1.5×18×8f
FFT4W30MF115	--	106	11	270	150	75	140	113	81	M8×100	165	W30×1.5×18×8f
FFT4W45MF115	72/	106	11	270	150	75	140	113	81	M8×100	165	W45×2×21×8f
FFT4W30MF130	102*	106	11	270	150	75	140	129	65	M8×100	165	W30×1.5×18×8f
FFT4W45MF130	--	106	11	270	150	75	140	129	65	M8×100	165	W45×2×21×8f
FFT5W45MF115	113	143	16	385	200	100	210	113	151	M12×140	210	W45×2×21×8f
FFT5W55MF115	92	143	16	385	200	100	210	113	151	M12×140	210	W55×2×26×8f
FFT5W45MF130	113	143	16	385	200	100	210	129	135	M12×140	210	W45×2×21×8f
FFT5W55MF130	92	143	16	385	200	100	210	129	135	M12×140	210	W55×2×26×8f

Specification	Ls	Lg	S	H	W	H1	H2	H3	H4	d × l	Spline size
FFC3W22MF115	82	88.5	17	433	120	60	319	113	268	M8×90	W22×1.25×16×8f
FFC3W30MF115	86/102	88.5	17	433	120	60	319	113	268	M8×90	W30×1.25×16×8f
FFC4W30MF115	72/102	108	11	527	152	76	394.5	113	336	M8×100	W30×1.5×18×8f
FFC4W45MF115	72/102	108	11	527	152	76	394.5	113	336	M8×100	W45×2×21×8f
FFC4W30MF130	72/102	108	11	527	152	76	394.5	129	320	M8×100	W30×1.5×18×8f
FFC4W45MF130	72/102	108	11	527	152	76	394.5	129	320	M8×100	W45×2×21×8f
